Gas Detection System

• Gas Detection System is designed for high-end use.
• This microprocessor based control panel and sensor module provide timely details of any activation at 3 different threshold levels.

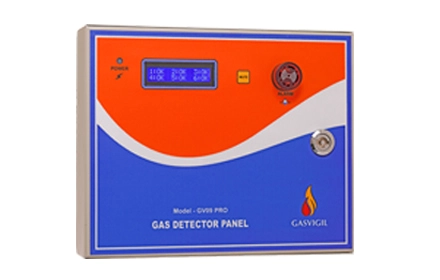

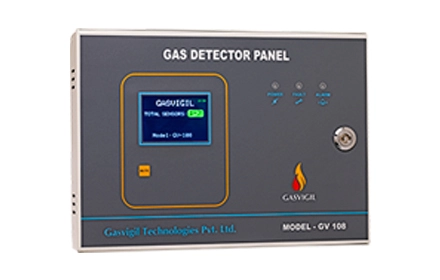

• The control panel with graphic LCD display provides clear visibility and also makes each sensor addressable.
• The sensor module comes with an LCD display unit showing percentage of leakage along with LED.
• The control panel also provides additional data monitoring and management by making itself compatible with devices like BMS or other security management devices.
• Optional PC software can be provided to be monitored on a computer.
• These detection systems are available for gases like LPG (Butane / Propane), Ammonia (NH3), Acetylene (DA), Carbon Monoxide (CO), and Hydrogen (H2).

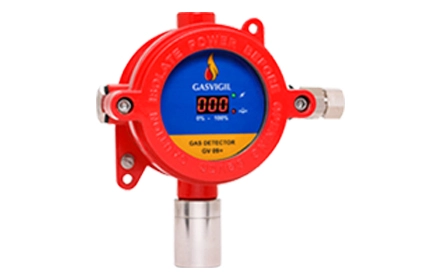

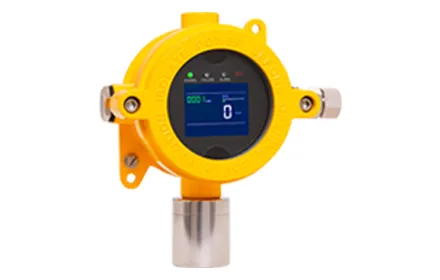

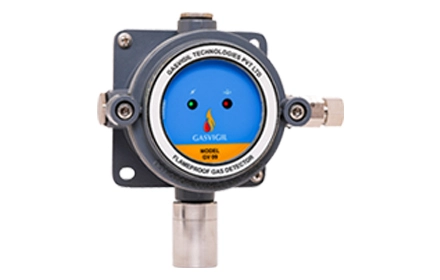

• Flameproof housing of sensors with digital display
• 3 level sensing threshold
• Single cable connecting all sensors in series (Up to 60 sensors)
• Sensor point calibration
• Each sensor digital display unit showing % of leakage

• Microcontroller based
• 60 sensors (expandable)
• Large Graphic LCD display with individual sensor details
• Fault alarm with LED Reset button on control panel to acknowledge activation
• Highly audible siren

• Connection to solenoid valve to activate and close the pipeline in case of leak
• Manual switch to bypass the closure

• The system can be integrated with BMS system using RS 485
• Software with each sensor details for continuous monitoring on computer (PC)

• Highly efficient sensing
• 5 seconds response time
• Automatically cut off the gas supply when leak detected

Our offered Multi Gas Detection System is specifically designed to detect gases like methane, natural gases, coal gases, hexane, propane, benzene, ethylene, butane, and pentane. This is a highly recommended device for checking gas leaks in pipeline joints which provides an instant response to the combustible gas leak. Additionally, this is also very efficient detecting other compounds like gasoline, industrial solvent, lacquer, refrigerant, sulfur dioxide, ammonia, sulphuretted hydrogen, and acetic acid. One of the unique characteristics of this equipment is that it provides quicker buzzing frequency when higher gas concentration alerting people and saving lives and property.

Features:

• Video indicator
• Easy startup and quick response time
• Light in weight and long life battery use
