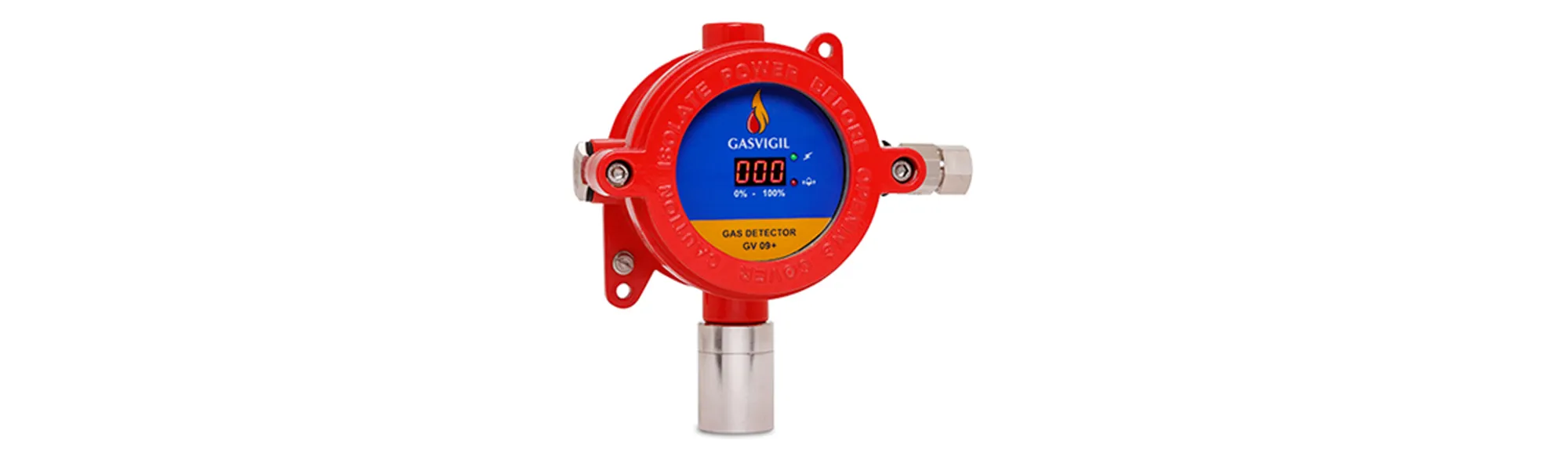

The GV09 LPG Gas Detector from Gasvigil Technologies is an advanced gas leak detection system designed for commercial gas monitoring and safety. This high-performance device provides real-time detection of LPG leaks, ensuring a secure environment with rapid response alerts. Applications include industries, gas banks, commercial kitchens and restaurants, hotels, food courts, and malls.
The GV09 LPG Gas Detector features a durable design for long-lasting performance, making it ideal for hotels, restaurants, and industrial applications. It offers quick response time, an easy-to-identify on LCD display, and an alarm system that activates when gas levels exceed safety limits. This advanced gas leak detection system from Gasvigil Technologies ensures a safe and secure environment for commercial establishments.
| Detection Gas | LPG/PNG |
| Range | 0-100% LEL |
| Min Reading | 1% LEL |
| Display Error | +/- 3%(F.S) |
| Transmission Distance | 80m |
| Alarm Point | Low Alarm: 10% LEL |
| Working Voltage | 24V DC |
| Rated Power | 2.5 W |
| Output Signal | Analog Switching signal |
| Detection Way | Diffusion |
| Response Time | < 60s |
| Cable Specification | Four Wire system RVVP4*1.0mm2 |
| Working Temp | -10C ~ 60c |
| Working Humidity | 10~95% RH |
| Storage Temp | 10C~40C |
| Sensor Type | Pellistor |
| Power Supply | 24V DC |
| Production Grade | Exd IIC T6 Gb |
| Protection Grade | IP67 |
| Electrical Interface | m20*1.5mm2 |
| Weight | 0.750Kg |
