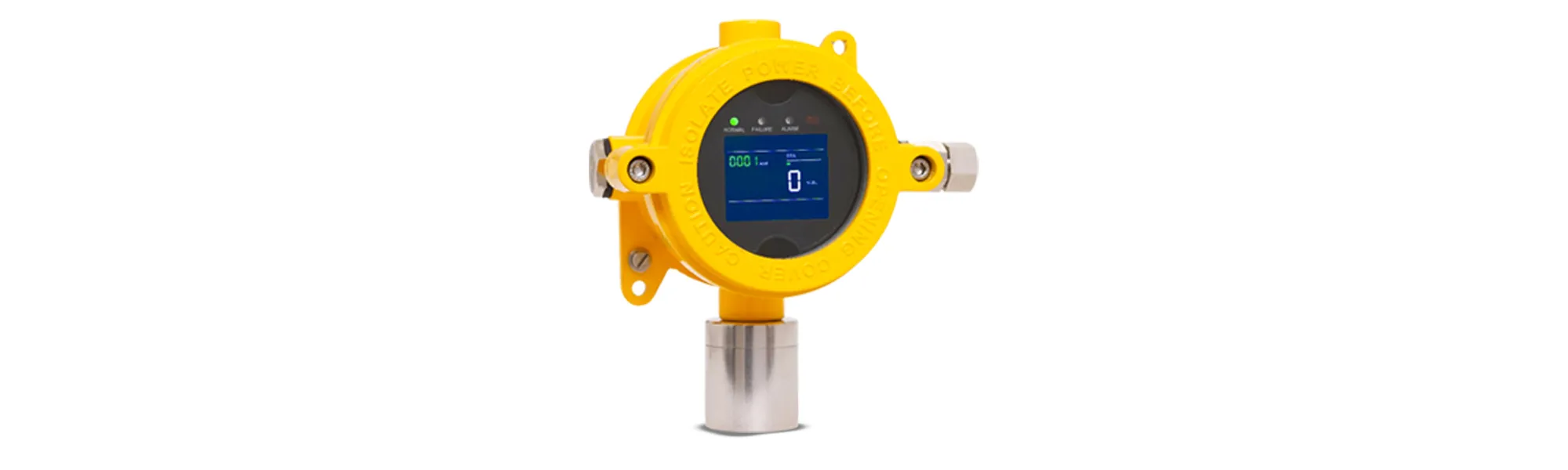

The Gasvigil Technologies GV 108 Gas Detector is a versatile, high-precision instrument engineered for industrial safety, commercial gas monitoring, and real-time gas leak detection. This cutting-edge solution proactively ensures safety by rapidly detecting LPG, a wide range of combustible gases, and toxic gases, providing immediate audio-visual alerts upon detection to minimize risks. Built for durability with a robust design and user-friendly interface, the GV 108 supports stringent industrial safety standards. Its advanced sensor technology, fast response time, and reliable performance make it a top choice for hazardous environments such as fuel storage facilities, commercial kitchens, and gas pipelines.
Key applications include:
- Commercial kitchens and food courts
- Industrial plants and manufacturing units
- Power generation facilities
- Gas cylinder storage and distribution centers
- Refineries and chemical plants
- Server rooms, battery rooms, and confined spaces
| Detection Gas | All Gases Available |
| Range | 0-100% LEL/PPM |
| Min Reading | 1% VOL |
| Display Error | +/- 3%(F.S) |
| Transmission Distance | 850m |
| Alarm Point | Low Alarm: 10% LEL, High Alarm:30% LEL |
| Working Voltage | DC24 +/- 3V |
| Rated Power | 2.5 W |
| Output Signal | Digital RS485 Communication |
| Detection Way | Diffusion |
| Response Time | < 60s |
| Cable Specification | Four Wire system RVVP4*1.0mm2 |
| Working Temp | -10C ~ 60c |
| Working Humidity | 10~95% RH |
| Storage Temp | 10C~40C |
| Sensor Type | Pellistor / Electrochemical |
| Power Supply | DC24V |
| Production Grade | Exd IIC T6 Gb |
| Protection Grade | IP67 |
| Electrical Interface | m20*1.5mm2 |
| Way to install | Fixed bracket / Wall mounting |
| Weight | 0.750Kg |
